More Falconsat

So after a little more research I found that WISP isn't the only program that can read the Falconsat data. UISS will also work using the 9600 baud modem. Here's how it looks:

Unfortunately transmitting isn't as easy - you need to pipe the audio into the packet input port on the 847, and we don't yet have a cable to do that nor do we know how to set the RigBlaster to use that input instead of the mic. More research to do.

7/31/18 - Here's a great reference: http://aprs.org/PFS3.html

Here's much more on setting up the Soundmodem and other stuff: http://www.microsofttranslator.com/BV.aspx?ref=IE8Activity&a=http%3A%2F%2Fwww.qsl.net%2Fpy4zbz%2Ffalconsat.htm

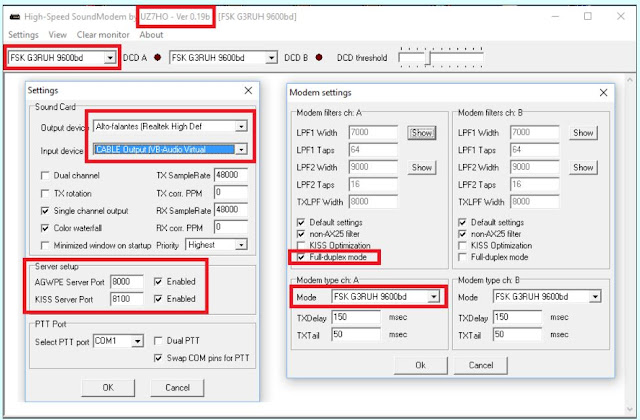

8/2/18 - be sure that the model settings are like this:

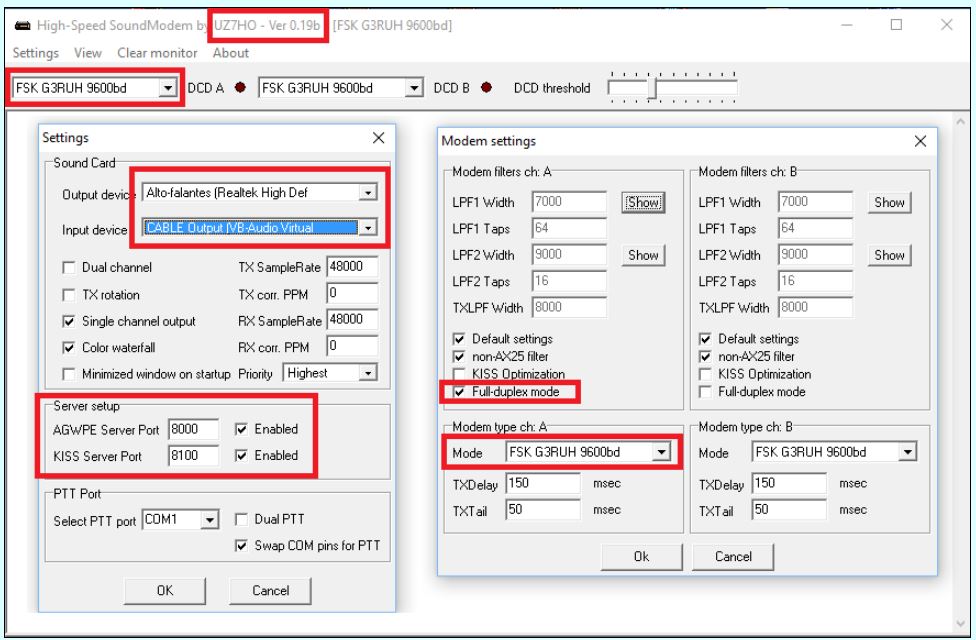

The whole picture should look like this:

More WISP info is here: http://www.ne.jp/asahi/hamradio/je9pel/wispinsv.htm

Old TLE:
FALCONSAT-3
1 30776U 07006E   17265.88227951  .00002651  00000-0  83127-4 0  9998
2 30776  35.4357 166.6005 0002067 143.4619 216.6248 15.32857285583257


UPLINK: 145.840MHz 9600bps GMSK
DNLINK: 435.103MHz 9600bps GMSK
Broadcast Callsign = PFS3-11
BBS Callsign       = PFS3-12
Unproto APRS via PFS3-1


More great links: http://www.ne.jp/asahi/hamradio/je9pel/wispvsp3.htm
http://www.ne.jp/asahi/hamradio/je9pel/falcons3.htm
http://www.ne.jp/asahi/hamradio/je9pel/wispinsv.htm
